Cable entries

System cover

with sleeve method for smooth cable ducts

HSI150 MA GR

Add to wish listAdd to wish list
System cover - with sleeve method for smooth cable ducts
USP
  • mechanical fixing (bayonet) and seal (clamping nut) act independently
  • bayonet system with return lock and locking screw connection (for protection against automatic opening)
For use in wall insert and plastic flange HSI150. For connecting smooth cable ducts. The seal is created with the sleeve method, with a rubber sleeve being clamped onto both the system cover and the duct with clamping straps.
System cover - with sleeve method for smooth cable ducts
Data is sent to YouTube when the videos are played. The data protection statements of YouTube and Hauff-Technik apply.

Facts

Advantages:

  • Mechanically stable, elastic connection with system sleeve

Scope of delivery:

  • includes sleeve with clamping straps

Properties:

  • FHRK-certified
  • For the duct connection Da=160 mm, we recommend using the spacer HSI AH40 to extend the centre distance when installing multiple HSI150 wall inserts

Material:

  • System cover: polycarbonate
  • Clamping nut: PC/PBT blend
  • Sleeve: EPDM
  • Clamping straps: W4

Tightness:

  • gastight and watertight to 0.5 bar
Downloads

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Pipe OD Carrier pipe Øa (mm) Article code Article number GTIN

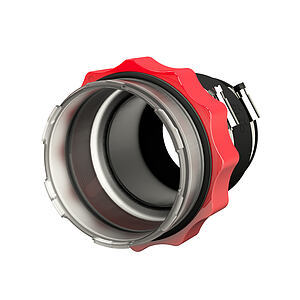

110 90-113 HSI150 MA110 GR 2126010110 4052487058346
Download of data sheet and tender specification
title=
125 110-125 HSI150 MA125 GR 2126010125 4052487058360
Download of data sheet and tender specification
title=
145 130-145 HSI150 MA145 GR 2126010140 4052487058377
Download of data sheet and tender specification
title=

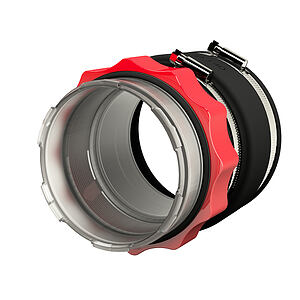

168 150-172 HSI150 MA168 GR 2126010000 4052487058292
Download of data sheet and tender specification
title=
