Fibre-optic expansion
Fibre-optic expansion  Fibre-optic building entriesThrough the wall - open construction

Membrane injection system

for buildings with a basement

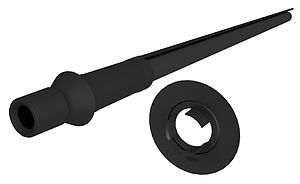

MIS60ND

Add to wish listAdd to wish list
Membrane injection system - for buildings with a basement
USP
  • no groundwork at the property
  • universal building entry with membrane injection system for drill holes in the most common types of wall
  • controlled ejection of resin through slit membrane hose
For reliable sealing of micropipes/ fibre optic cables, telecommunications cables or power cables. Can be used for uncontrolled drilling rockets.
Membrane injection system - for buildings with a basement

Facts

Advantages:

  • sealing lips ensure gentle seal for media lines
  • Variety of pre-mounted seal inserts for variable configuration

Scope of delivery:

  • 1 packing unit:
  • 10 pieces of MIS 60ND
  • 10 pieces of wall terminator element (only for communication variant)
  • 10 pieces of wall collar (only with electricity variant)
  • 10 pieces 2-component resin Resinator, 150 ml
  • 1 piece of quick tensioning device MIS60 SVS
  • 1 piece of core drill hole cleaning brush MIS REB

Dimensions:

  • For core drills Ø: 62 - 65 mm
  • For wall thicknesses: from 200 to 1200 mm

Application range:

  • Water exposure class DIN 18533: W1-E
  • Waterproof concrete stress class 1 and 2

Material:

  • Flange, seal insert and counter-bearing: EPDM
  • Resin filler hose: PE
  • Wall terminator element: Flame-retardant polycarbonate
  • Pipe: PVC-U
  • Wall rosette: PE
  • Fast arrangement fixture: glass fibre reinforced polyamide/ABS

Tightness:

  • gastight and watertight to 1.0 bar
Downloads

Brochures

Installation instructions

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Number of cables/medium suitable for medium pipe OD (mm) Overall lenght (mm) Wall thickness (mm) Article code Article number GTIN
1 6 - 12 1300 200 - 1.200 MIS60ND 1x6-12 BL1300 Set10 3030380188 4052487229678
Download of data sheet and tender specification
title=
3 10 1300 200 - 1.200 MIS60ND 3x10 BL1300 Set10 3030380187 4052487229685
Download of data sheet and tender specification
title=
4 5 - 7 1300 200 - 1.200 MIS60ND 4x5-7 BL1300 Set10 3030380186 4052487229692
Download of data sheet and tender specification
title=
1 12 - 18 1300 200 - 1.200 MIS60ND 1x12-18 BL1300 Set10 3030380190 4052487229654
Download of data sheet and tender specification
title=
1 18 - 24 1300 200 - 1.200 MIS60ND 1x18-24 BL1300 Set10 3030380191 4052487229647
Download of data sheet and tender specification
title=
1 24 - 30 1300 200 - 1.200 MIS60ND 1x24-30 BL1300 Set10 3030380192 4052487229630
Download of data sheet and tender specification
title=
1 30 - 34 1300 200 - 1.200 MIS60ND 1x30-34 BL1300 Set10 3030382136 4052487230148
Download of data sheet and tender specification
title=
