Cable entries

Repair sleeves

in hot shrink-fit method

WSMR

Add to wish listAdd to wish list

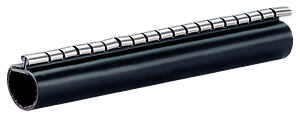

Repair sleeves - in hot shrink-fit method
For sealing cables already laid with system cover socket or sealing empty conduit end to cable.
Repair sleeves - in hot shrink-fit method

Facts

Advantages:

  • Wide area of application/shrink range
  • Split design for retrofit installation in break-throughs for media lines that have already been laid
  • Can also be used to clad damaged cable sheaths

Material:

  • Thermal sleeve with hot-melt adhesive: polyolefin
  • Sealing rail: metal
Downloads

Installation instructions

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

For system cover Lenght (mm) Shrinking range (mm) Article code Article number GTIN
HSI90 D1x75 WS, HSI150 D3x58 WS 250 85 - 20 WSMR l250 2x85-22 350040000 4052487010375
Download of data sheet and tender specification
title=
HSI90 D3x32 WS, HSI150 D7x33 WS 250 53 - 13 WSMR l250 2x53-13 350030000 4052487010351
Download of data sheet and tender specification
title=
HSI90 D6x20 WS 250 34 - 10 WSMR l250 2x34-10 350010000 4052487010337
Download of data sheet and tender specification
title=
HSI150 D1x125 WS, HSI150 D1x110 WS 250 143 - 36 WSMR l250 2x143-36 350100000 4052487010474
Download of data sheet and tender specification
title=
HSI150 D1x80 WS 250 107 - 29 WSMR l250 2x107-29 350070000 4052487010429
Download of data sheet and tender specification
title=
