Cable entries

Blind plug

For system cover

VS

Add to wish listAdd to wish list
Blind plug - For system cover
USP
  • tool-free single-handed installation
  • torque limitation
For pressure-tight sealing of sockets that are not in use (HSI system covers).
Blind plug - For system cover

Facts

Advantages:

  • Stop for exact positioning
  • Permanent or temporary sealing of sockets that are not in use

Material:

  • Seal: EPDM
  • Screws: stainless steel V2A (AISI 304L)
  • Press plates: glass fibre reinforced polyamide

Tightness:

  • gastight and watertight to 2.5 bar
Downloads

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

For system cover Socket diameter Article code Article number GTIN
HSI90 D6x20 20 VS20 3030300265 4052487216302
Download of data sheet and tender specification
title=
HSI90 D3x32, HSI150 D7x33 32-24 VS32/34 3030300266 4052487216319
Download of data sheet and tender specification
title=

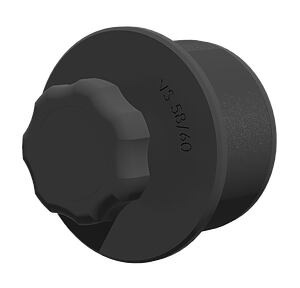

HSI150 D3x58 58-60 VS58/60 3030300267 4052487216326
Download of data sheet and tender specification
title=
